LeapLogic Deployment Architecture & Prerequisites

This topic provides the architecture and system prerequisites for deploying LeapLogic in both Single-node and Cluster modes.

In This Topic:

Single-node Mode
Clustered Mode (Hadoop)
LeapLogic and Impetus’ Cloud Cost Optimizer (CCO) Installation

Single-node Mode

This section outlines the hardware and software prerequisites along with the deployment architecture for deploying LeapLogic in single-node mode.

Hardware and Software Prerequisites

Component	Specifications
Machine Configuration	16 Core, RAM – 64GB (minimum) or 128GB (maximum), 500GB HDD The user deploying LeapLogic should have full access to the aforementioned mount point of the Linux server OS Hardening – Set hard and soft limits of OS in file /etc/security/limits.conf, restart the session Sample configuration soft nofile 65536 hard nofile 65536
Software	RHEL 8 or 9.3; Oracle Linux 9.4; Amazon Linux 2023 AMI JDK 17 with Sun Java version 17.0.10 or any higher version of Sun Java 17 SSL certificate if deployment over HTTPS is required Zip/Unzip,tar dos2unix
User Access	LeapLogic machine OS User User should have privilege to deploy the build
LeapLogic Web App Ports open	13030 – used for accessing application (should be accessible over VPN/VDI) 22 – used for deployment (should be accessible over VPN/VDI)
Access requirements	Read access of source Read and Write access of target MAC address of the machine on which LeapLogic will be installed – required for license
Security	All workloads/artifacts are stored on the machine locally where the product is installed

Note:

This machine configuration is based on the query log size. It may need to be upgraded when the size of query logs is large.

Deployment in Single-node Mode

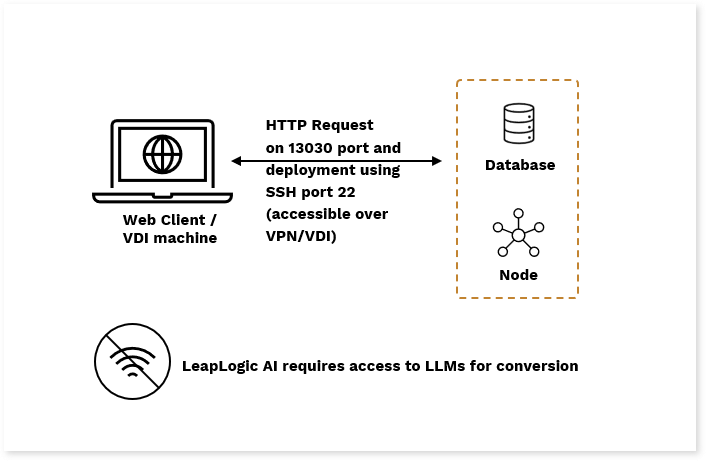

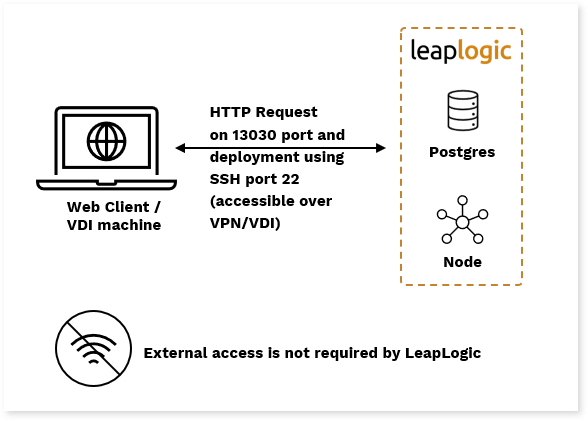

Here, you can see the connectivity flow and port configuration used for single-node deployment of LeapLogic.

Clustered Mode (Hadoop)

This section outlines the hardware and software prerequisites along with the deployment architecture for deploying LeapLogic in clustered mode (Hadoop).

Hardware and Software Prerequisites

Component	Specifications
Machine Configuration	16 Core, RAM – 64GB (minimum) or 128GB (maximum), 500GB HDD – Edge Node The user deploying LeapLogic should have full access to the aforementioned mount point of the Linux server OS Hardening – Set hard and soft limits of OS in file /etc/security/limits.conf, restart the session Sample configuration soft nofile 65536 hard nofile 65536
Software	RHEL 8 or 9.3, Oracle Linux 9.3, Amazon Linux 2023 AMI JDK 17 with Sun Java version 17.0.10 or any higher version of Sun Java 17 SSL certificate if deployment over HTTPS is required Zip/Unzip,tar dos2unix
User Access	LeapLogic machine OS User User should have privilege to deploy the build
LeapLogic Web App Ports open	13030 – used for accessing application (should be accessible over VPN/VDI) 22 – used for deployment (should be accessible over VPN/VDI)
Access requirements	Read access of source Read and Write access of target MAC address of the machine on which LeapLogic will be installed – required for license
Security	All workloads/artifacts are stored on the machine locally where the product is installed

Note:

Edge node is a part of the Hadoop cluster itself where it has access to all the Hadoop services.

LeapLogic supports CDP 7.1.9

Deployment in clustered mode

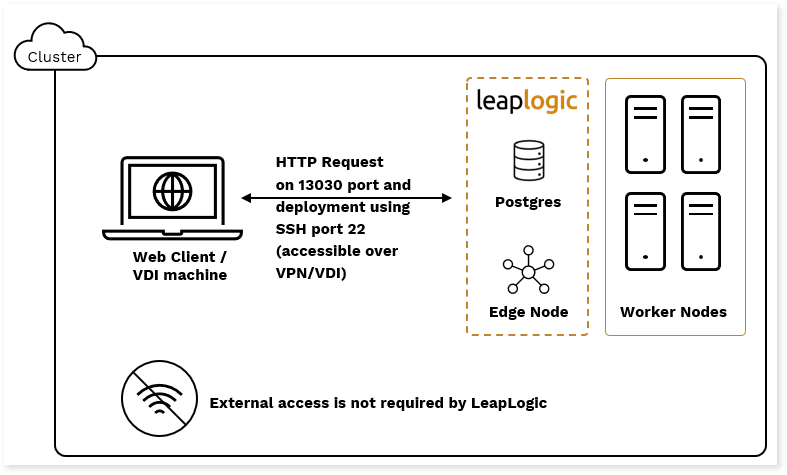

Here, you can see the connectivity flow and port configuration used for cluster mode deployment of LeapLogic.

LeapLogic and Impetus’ Cloud Cost Optimizer (CCO) Installation

This section outlines the hardware and software prerequisites for installing LeapLogic and Impetus’ Cloud Cost Optimizer (CCO).

Hardware and Software Prerequisites

Component	Specifications
Machine Configuration	32 Core, RAM – 128GB (preferred), 1TB HDD The user deploying LeapLogic should have full access to the aforementioned mount point of the Linux server OS Hardening – Set hard and soft limits of OS in file /etc/security/limits.conf, restart the session Sample configuration soft nofile 65536 hard nofile 65536
Software	Amazon Linux 2023 AMI JDK 17 with Sun Java version 17.0.10 or any higher version of Sun Java 17 SSL certificate if deployment over HTTPS is required Zip/Unzip,tar dos2unix
User Access	LeapLogic machine OS User User should have privilege to deploy the build
LeapLogic Web App Ports open	13030 – used for accessing application (should be accessible over VPN/VDI) 22 – used for deployment (should be accessible over VPN/VDI)
Access requirements	Read access of source Read and Write access of target MAC address of the machine on which LeapLogic will be installed – required for license
Security	All workloads/artifacts are stored on the machine locally where the product is installed

Note:

This machine configuration is based on the query log size. It may need to be upgraded when the size of query logs is large.
