SSRS Assessment Report
This topic contains information about the SSRS assessment report. The assessment assesses the SSRS workloads and produces in-depth insights that help to plan the migration. The input formats for SSRS assessment are RDS, RSD, and RDL.
In This Topic:
Highlights
The highlights section gives you a high-level overview of your assessment summary of the analytics performed on the selected workloads. It includes visualizations, parameters, filters, and columns of the files used.

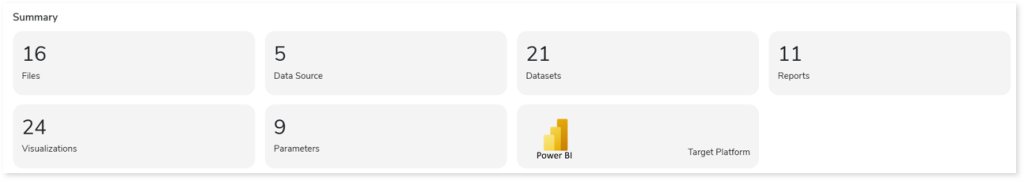

Summary
This section provides an overview of input source files and the associated workload inventory including files, data sources, datasets, visualizations, and more.
- Files: Displays the number of files.
- Data Sources: Displays the number of data sources.
- Datasets: Displays the number of datasets present in the files.
- Reports: Displays the number of reports in the files.
- Visualizations: Displays the number of visuals such as pie charts, heat maps, clustered column graphs, and more in reports.
- Parameters: Displays the number of parameters in the reports.
Visualizations
This section displays the graphical visualizations used in the reports such as charts, matrixes, tables, text boxes, etc.
Parameters
This section provides details about the report and query parameters.
- Report Parameters: Refers to parameters present in reports that are used to filter the data.
- Query Parameters: Refers to a defined set of parameters to retrieve or fetch data from the database.
Filters
This section provides information about filters including dataset and report filters. It is a process of filtering out the data to minimize the data set size, remove irrelevant records, etc.
- Total Filters: Displays the total number of filters.
- Dataset Filters: Displays the number of dataset filters that are applied to the datasets.
- Report Filters: Displays the number of report filters that are applied to the reports.
Columns
This section provides details about the columns in the entities including the total number of columns and number of calculated columns.
- Total Columns: Total number of columns available in the entities.
- Calculated Columns: Columns in which functions or operations such as min, max, sum, avg, etc. are implemented for calculation.
Analysis
This topic provides a detailed examination of source files, datasets, reports, and parameters.
Files
This section provides a comprehensive report of the source file including statistical information about datasets, data sources, columns, and queries.
- File Name: Displays the name of the file.
- Datasets: Displays the number of datasets in the file.
- Data Sources: Displays the number of data sources in the file.
- Columns: Displays the number of columns in the file.
- Queries: Displays the number of queries.
Datasets
This section provides details about the datasets including dataset types, columns, filters, and more.
- Datasets Name: Displays the dataset name.
- Dataset Type: Displays dataset types such as shared, embedded, and report.
- Shared: Refers to a dataset that is published or defined on a report server. This dataset is used across multiple reports on the same server.
- Embedded: Refers to a dataset defined within a specific report. This dataset is used only in that specific report.
- Report: The report dataset does not contain data; instead, it defines a reference point to the shared dataset that needs to be used in the report.
- Columns: Displays the number of associated columns.
- Filters: Displays the number of filters in each dataset.
- Parameters: Displays the number of parameters in each dataset.
- Calculated Columns: Displays the number of calculated columns.
Reports
This section provides details about reports including visualization objects, parameters, and filters.
- File Name: Displays the file name.
- Visualization Objects: Displays the number of visualization objects in each file.
- Parameters: Displays the number of parameters in each file.
- Filters: Displays the number of filters in each file.
Parameters
This section provides details about parameters including its types, datasets, and associated files.
- Parameter Name: Displays the name of the parameter.
- Type: Displays the parameter types such as query or report.
- Report Parameters: Refers to parameters present in reports that are used to filter the data.
- Query Parameters: Refers to a defined set of parameters to retrieve or fetch data from the database.
- Dataset: Displays the dataset associated with each parameter.
- File: Displays the file path where the parameter is present.
Downloadable Reports

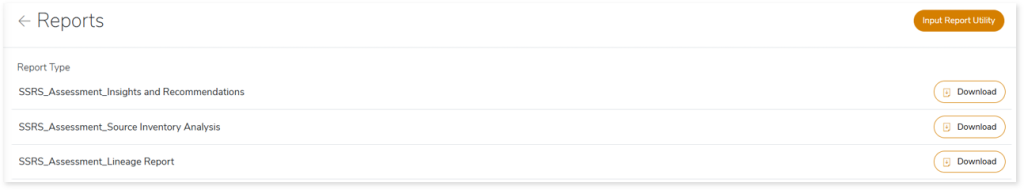

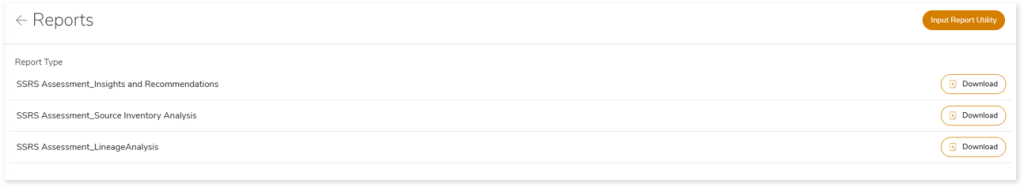

Downloadable reports allow you to export detailed SSRS assessment reports of your source data which enables you to gain in-depth insights with ease. To access these assessment reports, click Reports.
Types of Reports
In the Reports section, you can see various types of reports such as Insights and Recommendations and Source Inventory Analysis. Each report type offers detailed information allowing you to explore your assessment results.
Insights and Recommendations
This report provides an in-depth insight into the source input files. It contains the final output including information about reports and datasets.

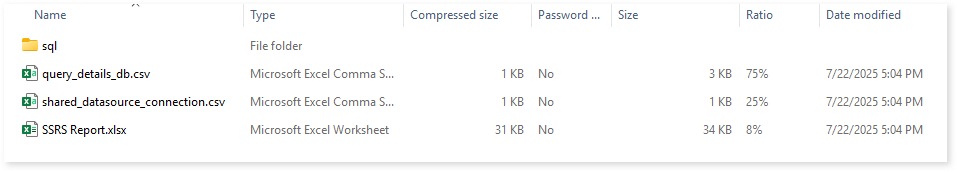

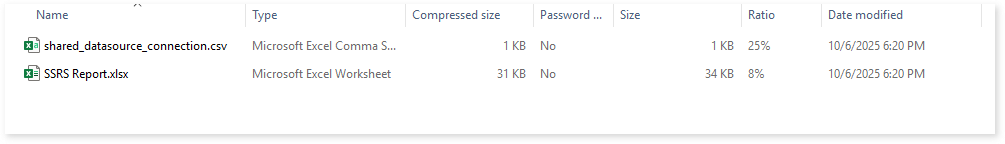

SSRS Report.xlsx: This report provides insights about the source inventory. It helps you plan the next frontier of a modern data platform methodically. It includes information about reports and datasets.
This report contains the following information:
- Report Summary: Provides information about all the generated artifacts.

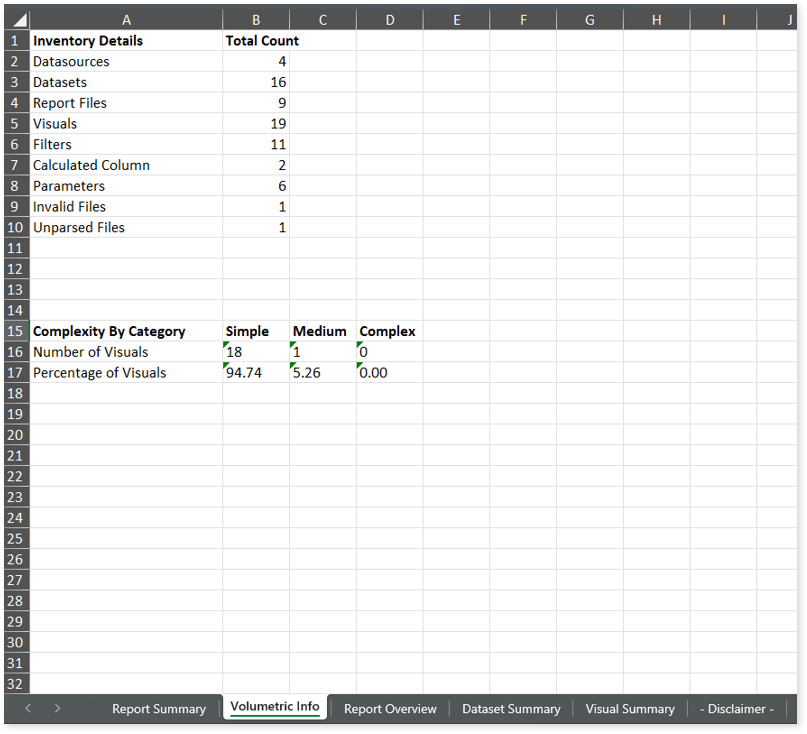

- Volumetric Info: Presents a summary of the aggregated inventory after analyzing the source files. For instance, it provides volumetric info about the total number of data sources, data sets, report files, and likewise.
- Report Overview: Provides comprehensive information for reports including count of tablix, matrices, text boxes, charts, and more.
- Dataset Summary: Lists all the datasets along with information about the data sources, commands, query parameters, dataset filters, and more.
- Visual Summary: Lists all the visuals along with information about total number of columns, calculated columns, filters, and more
Source Inventory Analysis

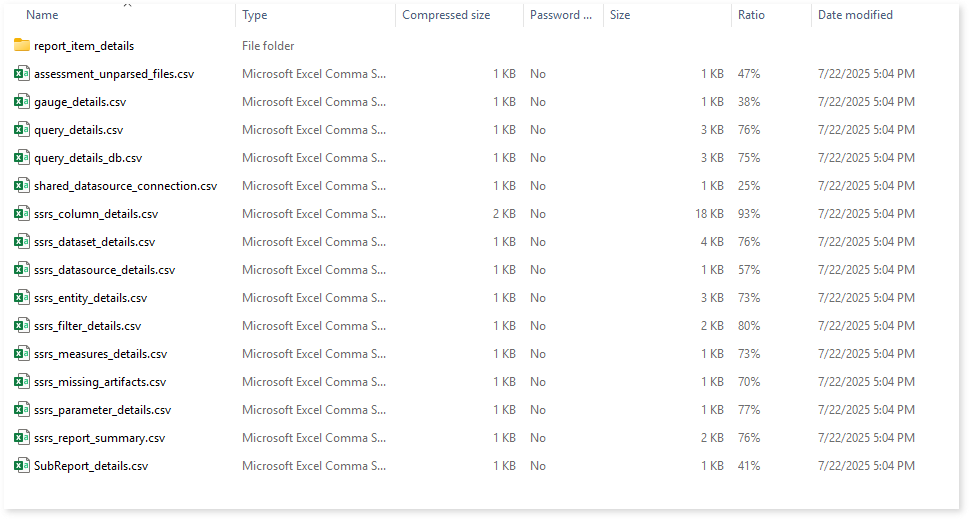

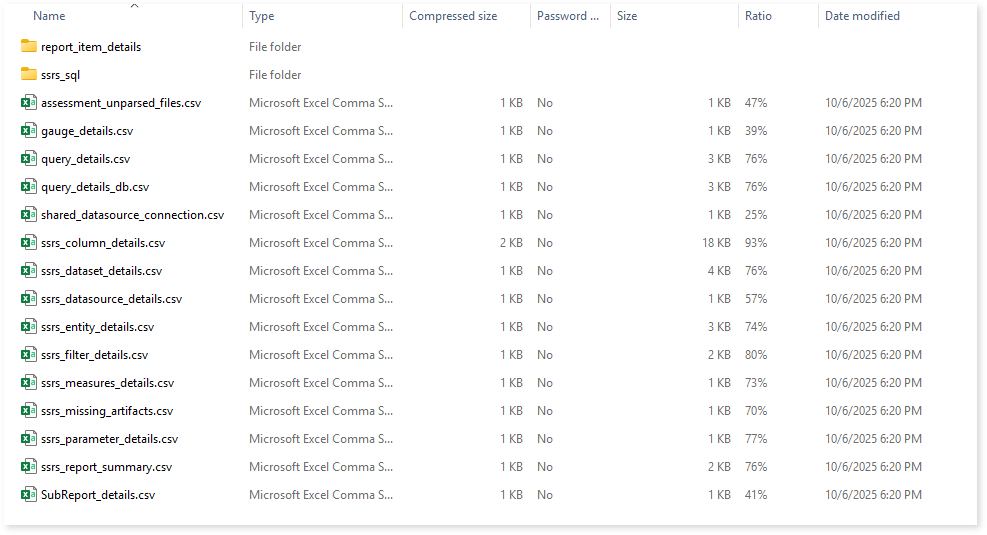

It is an intermediate report which helps to debug failures or calculate the final report. It includes all the generated CSV reports such as ssrs_dataset_details.csv, ssrs_missing_artifacts.csv, ssrs_report_summary.csv, and more.

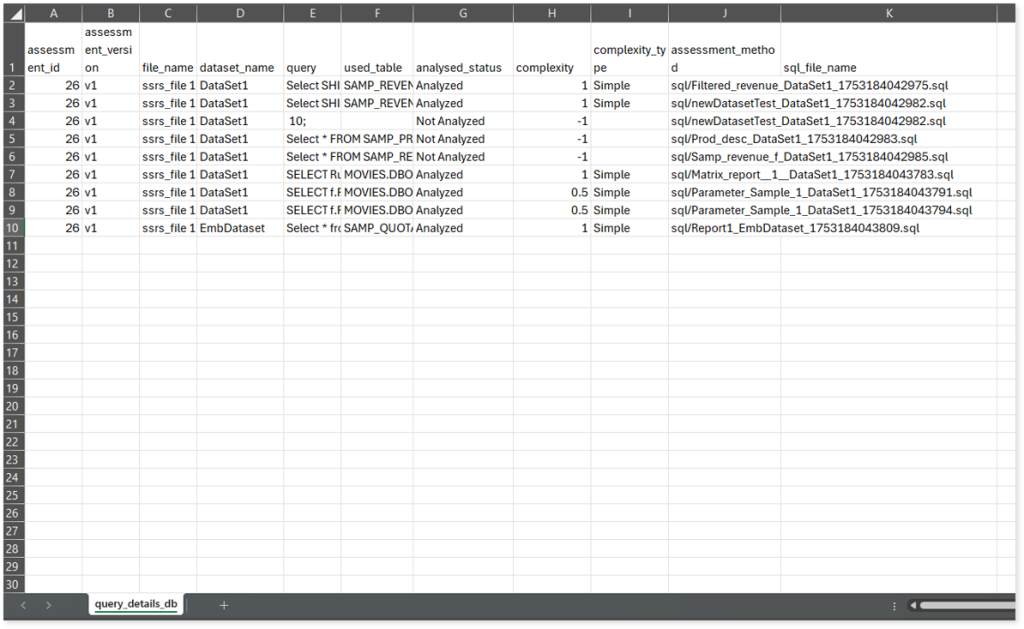

query_details.csv: This report provides information about queries including the used tables, analyzed status, complexity, and more. If the analyzed status is Analyzed, it indicates that the query is analyzed successfully. Conversely, a Not Analyzed status indicates that the query is not analyzed.

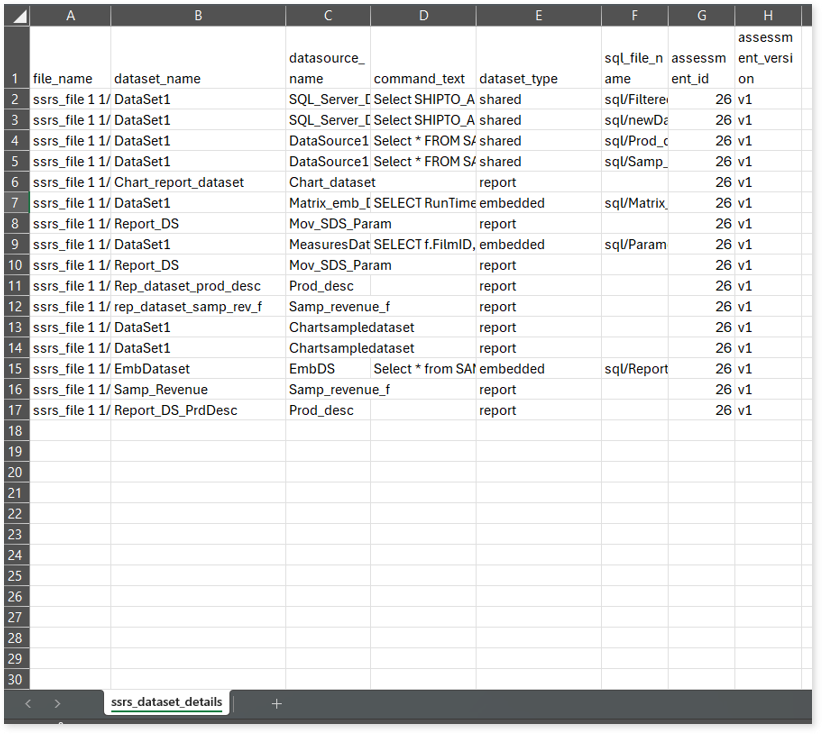

ssrs_dataset_details.csv: This report provides information about datasets including data sources, dataset types, and more.
ssrs_missing_artifacts.csv: This report provides information about missing artifacts.

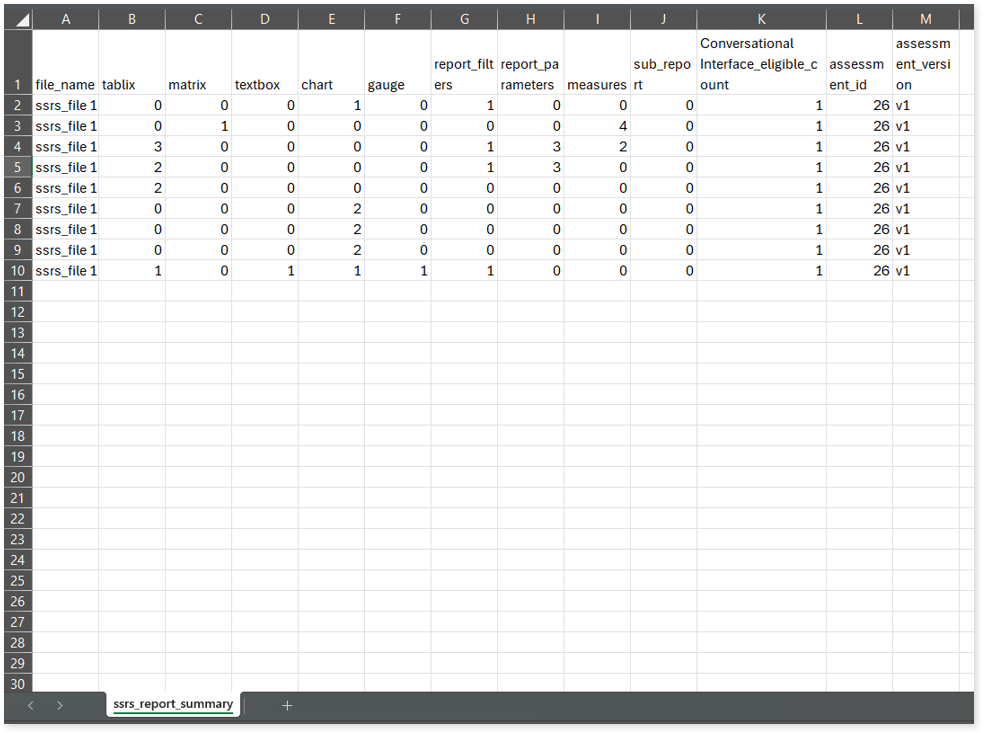

ssrs_report_summary.csv: This report provides comprehensive information for reports including count of matrices, text boxes, charts, and more.
