Configuring Tableau to Power BI Conversion Stage

This topic provides steps to configure the Tableau to Power BI conversion.

In Script Type, select Tableau.
In BI Assessments, select the report from the BI assessments that you want to transform.
In Target Type, select Power BI.
Select Data Configuration to configure the data for conversion.

In Source, select the workbooks you need to transform. To select the workbooks to transform, follow the steps below:

Select Tableau WorkBook.
Select the required workbooks from the Tableau WorkBook card.
Click to move the selected workbooks to the Selected Tableau WorkBook card.

In the Tableau WorkBook or Selected Tableau WorkBook card, click on the preferred workbook to get more details about the workbook. It includes information about dashboards, data sources, and worksheets along with its associated physical and logical tables.

In Upload Relationship Mapping File, upload a relationship mapping file named Tableau Datasource Relationship Mapping.xlsx which is generated as one of the assessment reports. Before uploading the file, update the required cardinalities of physical tables in the From Cardinality and To Cardinality columns within the report.

In Output Type, select PBIP as the output type format for the generated artifacts.
To convert the worksheets that are not used in the dashboard, turn on the Unused Worksheet Conversion toggle.
In Power BI Workspace, provide the workspace name where you want to publish the output artifacts.

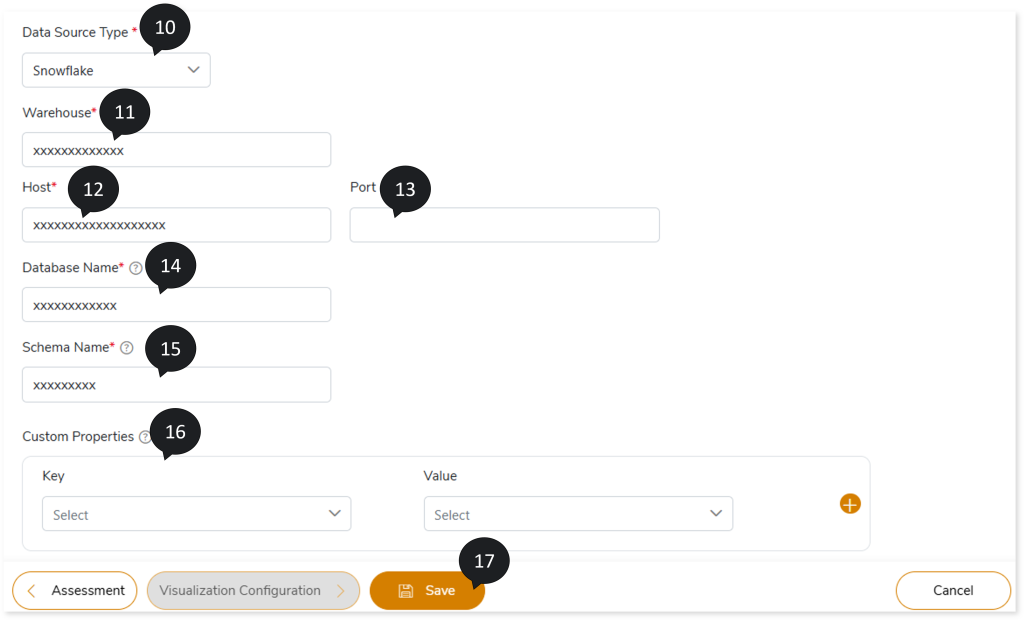

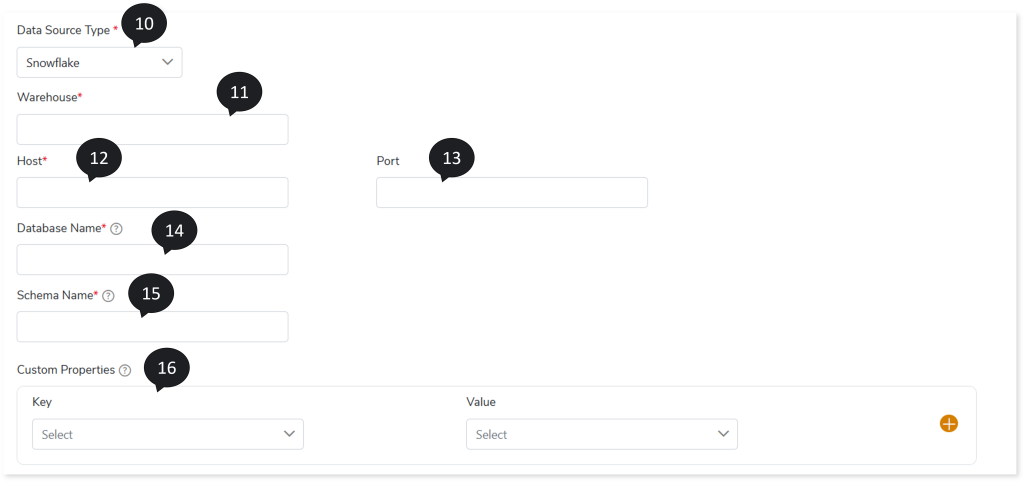

In Datasource Type, select the source database such as SQL Server, Redshift, and Snowflake to load the data.
In Warehouse, provide the data source warehouse details.
In Host, provide the data source host address.
In Port, provide the data source port number.
In Database Name, provide the database from which you need to fetch the source data.
In Schema Name, provide the corresponding schema from which you need to fetch the data.
In Custom Properties, enter the key and value. This enables you to replace the values at execution/run time for parameterized queries.

Click Save to update the changes.
An alert pop-up message appears. This message prompts you to refer your respective assessment to determine the anticipated quota deduction required when converting your scripts to target. Then click Ok.

Click to provide a preferred pipeline name and to save the pipeline.
Click to execute the integrated or standalone pipeline. Clicking (Execute) navigates you to the pipeline listing page which shows your pipeline status as Running state. It changes its state to Success when it is completed successfully.
Click on your pipeline card to see reports.

To view the Tableau to Power BI Conversion report, visit Tableau to Power BI Conversion report.
