Ab Initio Conversion Report
This topic provides a comprehensive report on Ab Initio ETL conversion. The ETL conversion pipeline converts legacy Ab Initio workloads to modern cloud platforms.
This section provides an overview of the ETL conversion, which includes:
- Scripts Transformed: Displays the number of scripts you have given as input in the ETL Conversion Stage. It also gives a segregated view of how many scripts were successfully converted and how many failed.
- Status: Status of the ETL conversion stage.
- Automatic Conversion Rate: Provides the percentage of automatic conversion.
In This Topic:
Scripts
This topic shows a comprehensive report of the converted artifacts. The left panel lists all the input files along with the file-wise transformation percentage. The right panel shows information about the selected file. It includes information about the nodes, pipeline stage name, the status of the nodes along with success or failure messages. The failure message helps you understand the error and guides you to fix it.
Besides providing this information, this section allows you to take a variety of actions, such as:
|
Feature |
Icon |
Description |
|
Download All |
 |
To download all the graphs.
You can download graphs in an alternative way by:
- Click
 on the preferred graph or node.
- Click
 and then select Download Graph.
|
|
Sort |
 |
To sort the nodes. You can sort the nodes based on:
- All Nodes
- Success Nodes
- Failed Nodes
|
Package

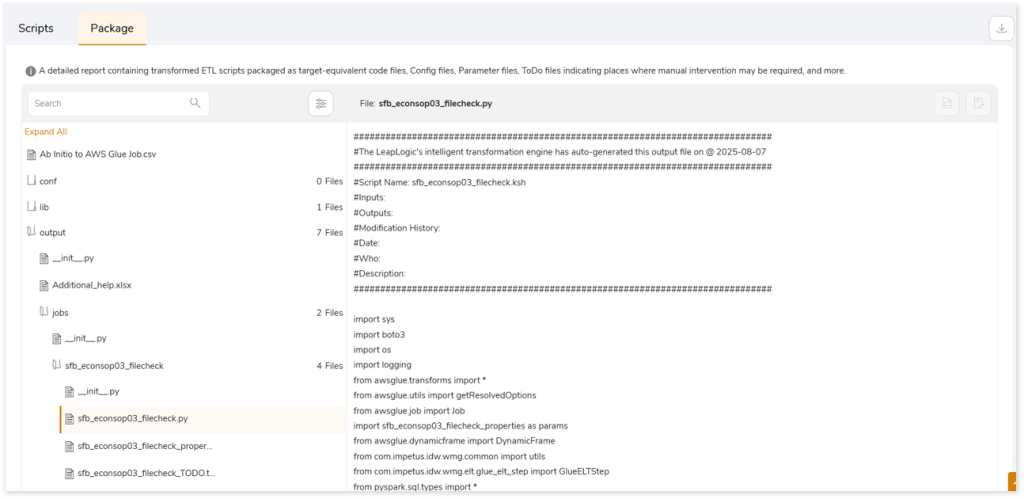

This topic provides a detailed report of the converted artifacts containing sh scripts, java files, etc. along with an executable jar file.
Moreover, the TODO file displays messages regarding the components that are not converted automatically and require manual intervention.

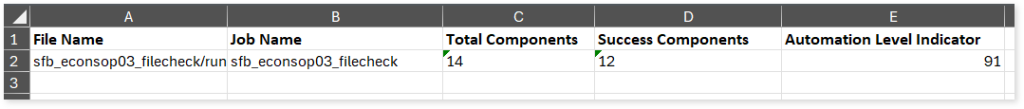

In the Package section, you can also see an Assessment-based CSV file or Transformation-based CSV file depending on your Attainable Automation selection during the Ab Initio conversion stage. It includes information about graphs, status, and the automation percentage of each file.
